2007 Heater Testing at Shawville

Test HK-H10
February 28/07

Mixed size maple. 19% moisture (estimated)
6 pieces , stacked 222. Left side ignition.
Cold heater. 3 days since last burn.
Air open. Air setting unchanged during burn.

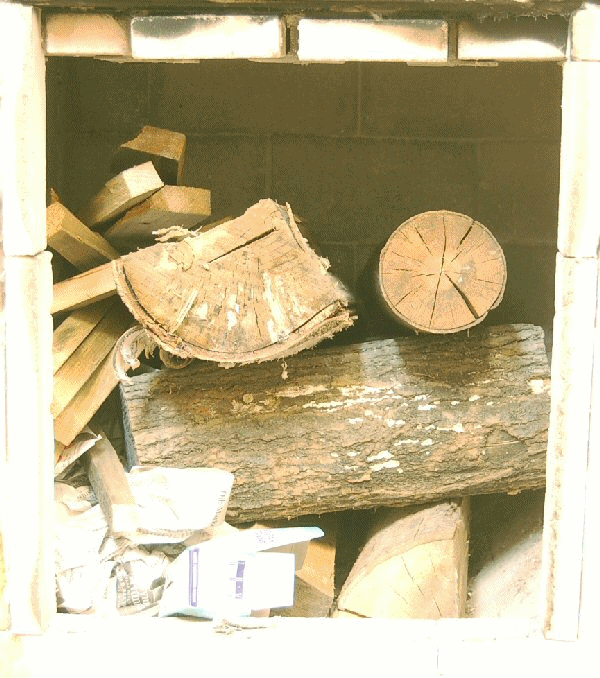

Animated Gif below, taken at 2 minute intervals.

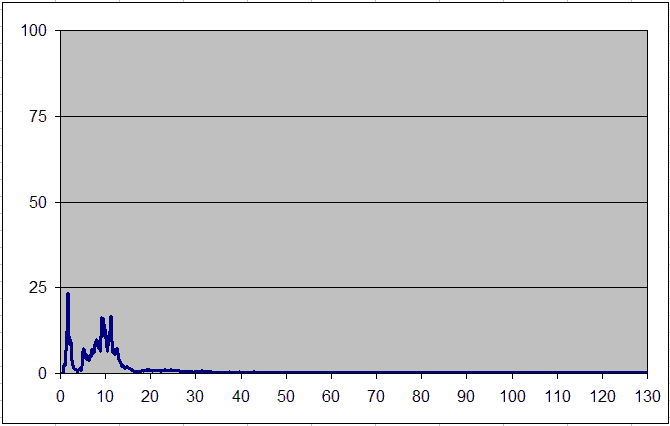

Revised opacity system.
Animation HK-H

gas analysis

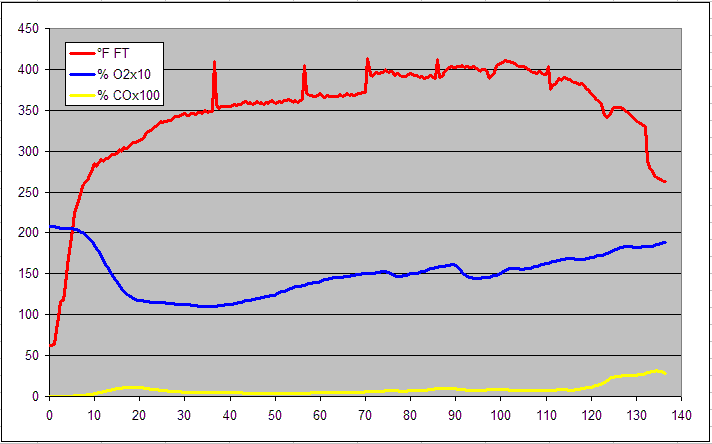

Flue gas analysis
A large number of pokes are evident from the red spikes. The two top logs were two far apart, and needed to
be reoriented several times.


The flashlight from HK-H09 has been replaced with a 50 watt halogen bulb.
Scaling is referenced to HK-H11, which reached 100% opacity.

Fuel Load - HK-H
Fuel Load

TESTO Excel data file

Fueling data
