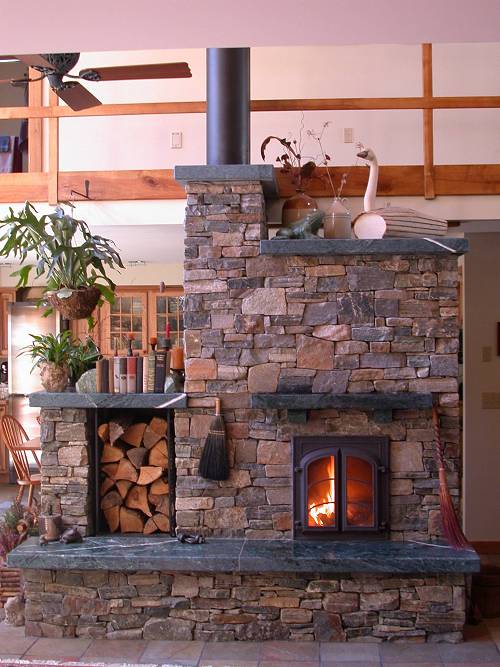

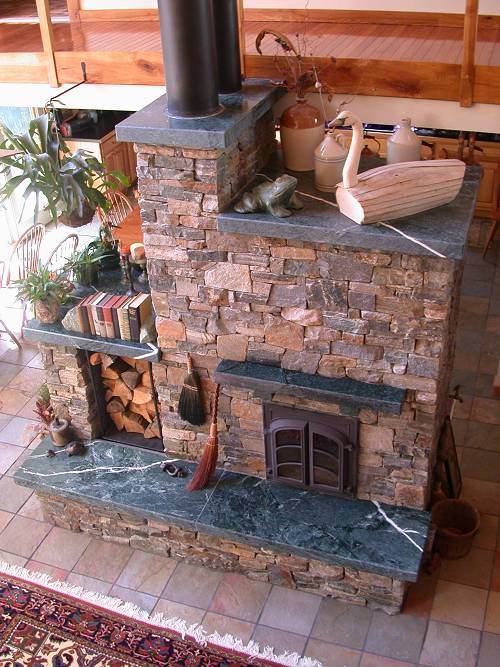

Granite and Marble Heat-Kit

• Mason: William Davenport, Turtlerock Masonry Heat, Burlington VT
• Granite facing and 3" marble slabs
• Rear bake oven
• Domestic hot water coil
• Heated bench
• Wood storage with Woodwaiter from basement
• built in August, 2001

• Heater chimney exits into steel factory chimney. Rear flue is for furnace hook-up in basement.
• This is the primary heating system for this low energy, engineered SIP (structural insulating panel) house.
• Owner reports burning 2 loads per day when outside temperature is below 20 F (-7 C), and 1 load
  otherwise.

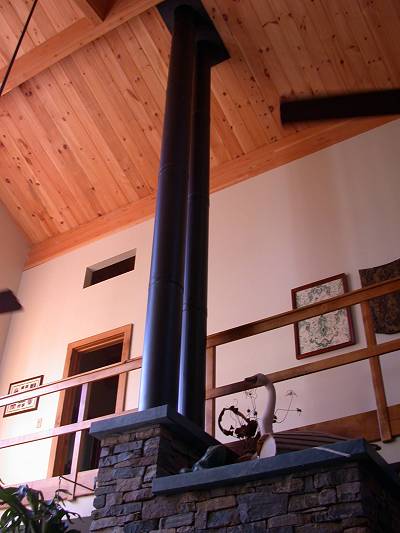

Chimney detail.

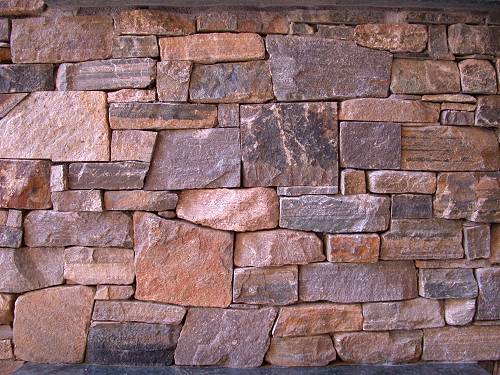

Stonework detail. Corinthian granite, set with dry joints.

• Kitchen side with bake oven.
• Domestic hot water coil exits here.
• Hot water thermosyphons into tank upstairs, about 20 feet away from the heater.
• House is off grid. Electricity is supplied by micro-hydro.
• Location: near Rutland, Vermont

Heater plan

Heater elevation

Detail

Download the custom drawings for this heater.

Download heater core assembly and finishing instructions.

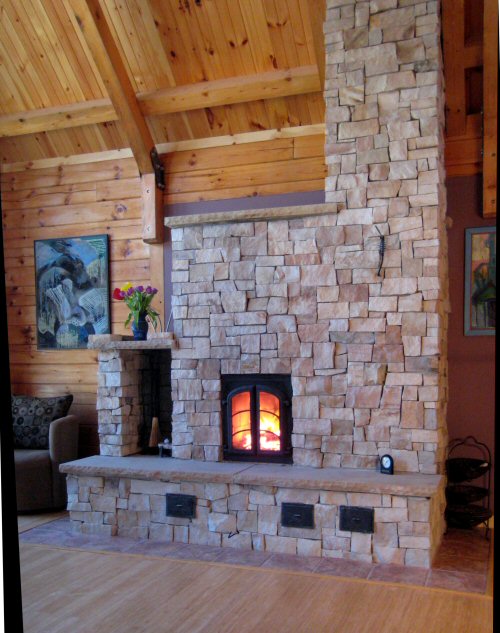

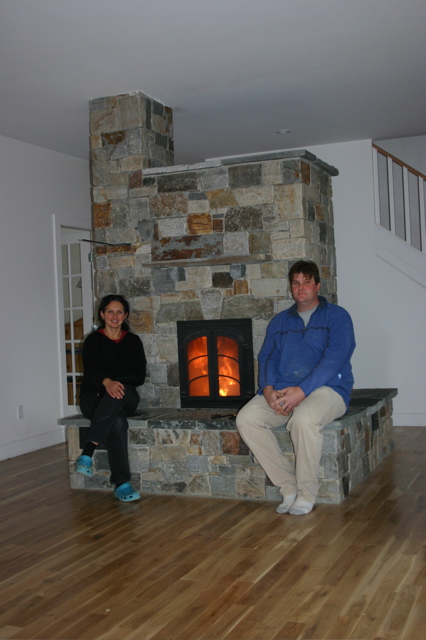

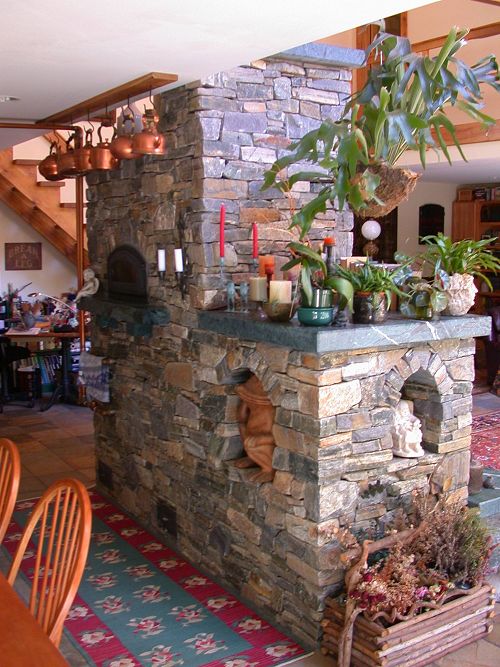

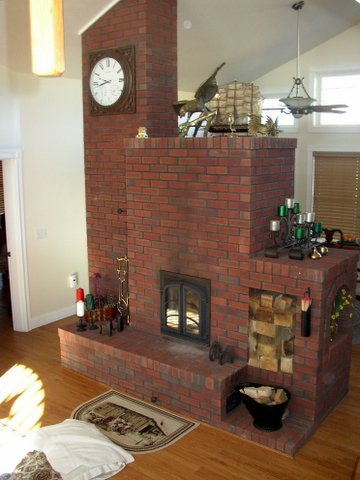

Variations on this design:

Details from a similar design:

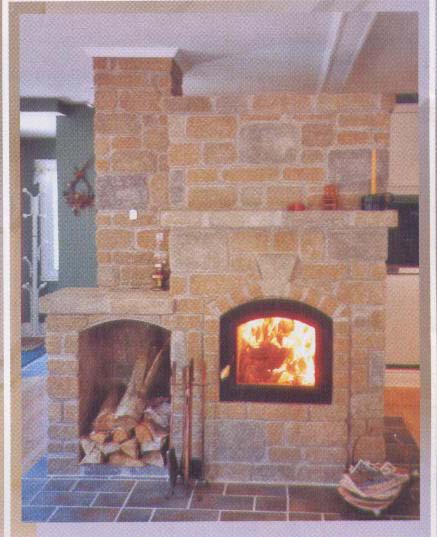

C-CENT: HK-22 w. oven, heated bench, wood storage. Delivered and installed core, Waterloo, ON. July 31, 2003

Client floorplan
Plan, elevation, perspective

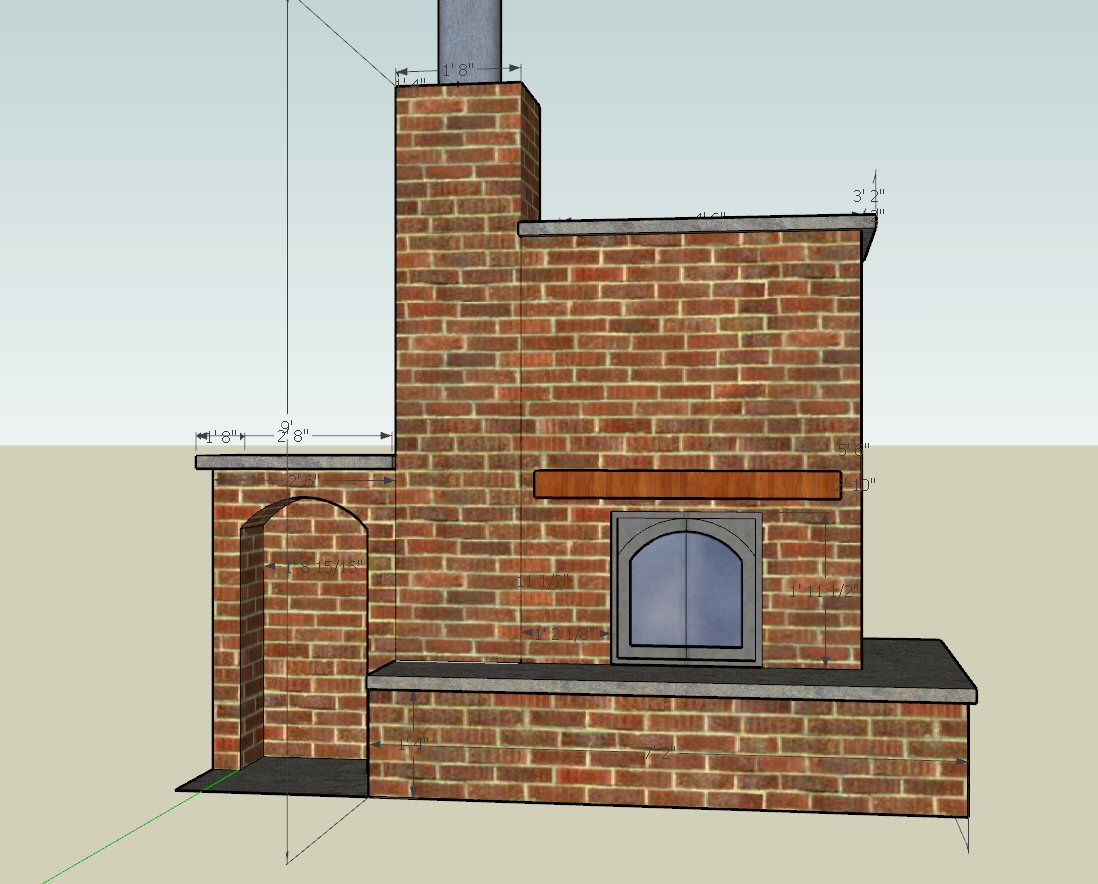

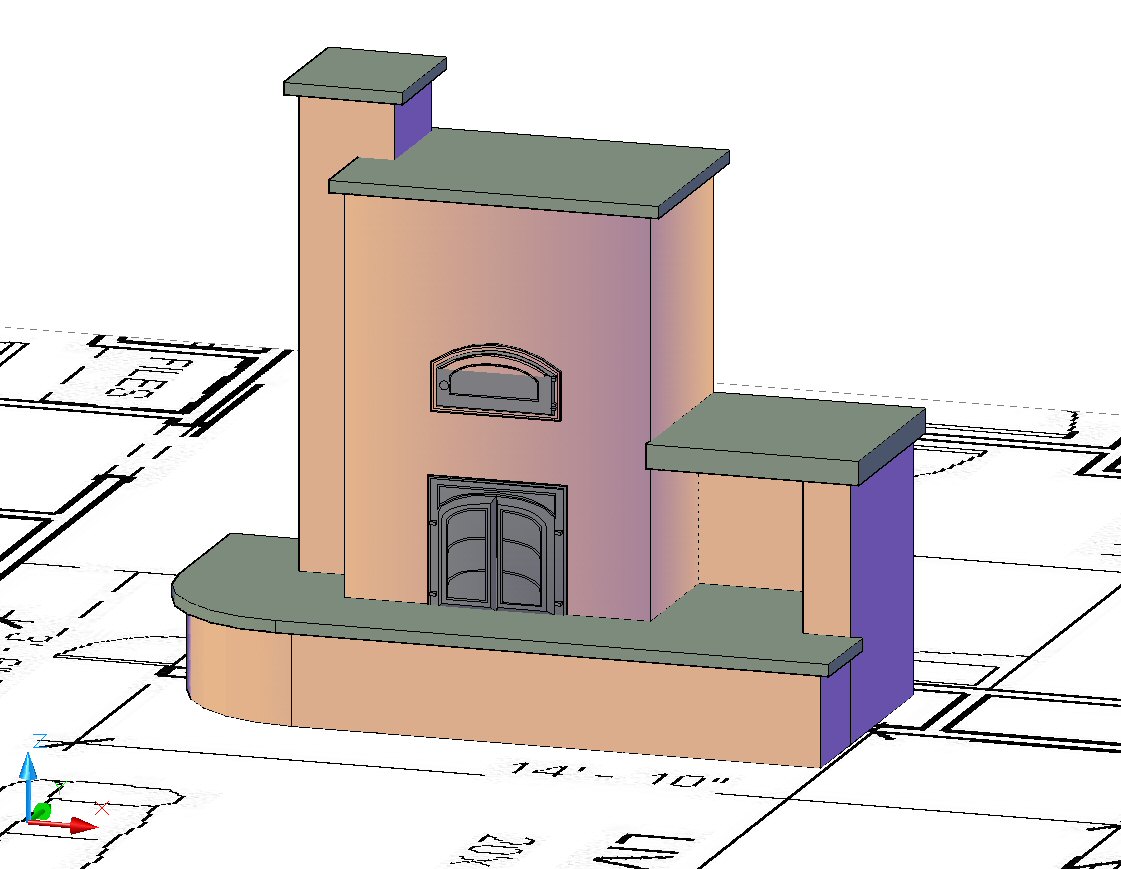

Heater rendering
Metal chimney anchor plate detail

This page last updated on October 1, 2013
This page created on October 11, 2002
