Chamfered Corner on a Heated Bench

The flue liners sit 9" from the core - 5" for the facing, plus 4" all around the bench, including underneath.
The bench is the same as a piece of chimney lying on its side.
Often, 2" stone is used for the bench top, instead.

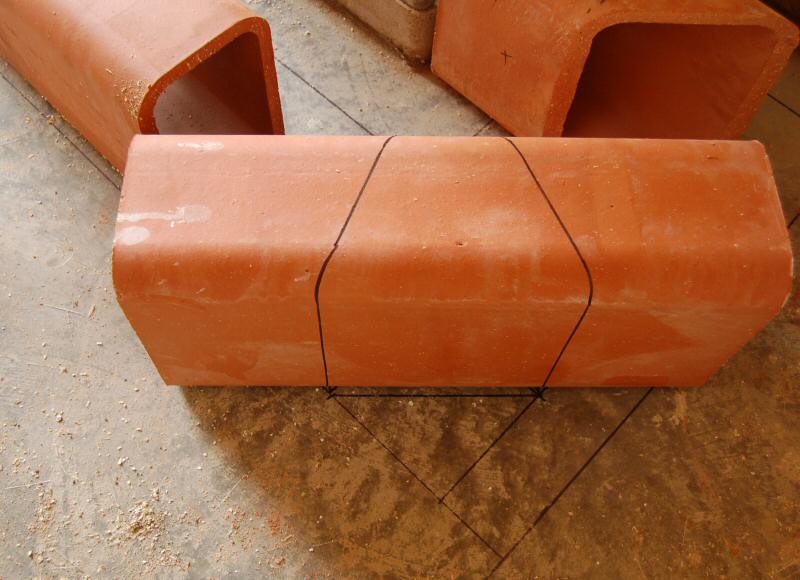

Vertical cut lines are transferred from the slab layout to the liner using a carpenter's square. First on the front -

...then on the back. The vertical lines are then connected to form 2 cut lines around the flue liner.

Two cuts yield a 3 piece chamfered corner.

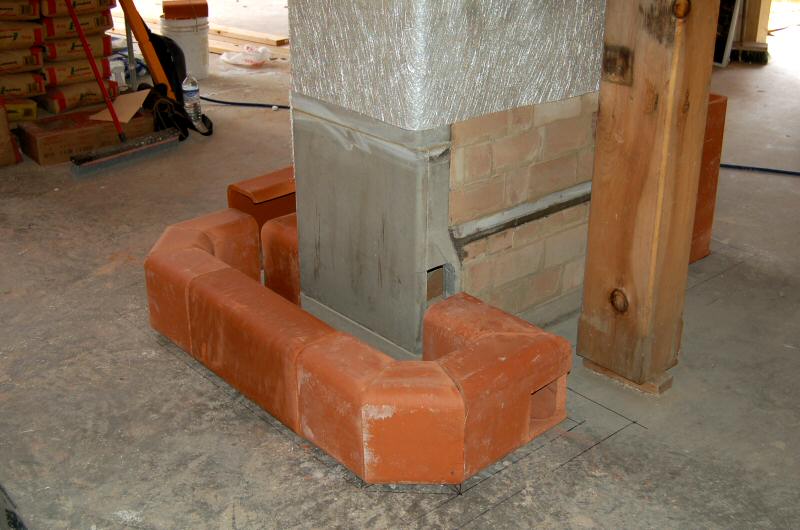

Wraparound heated bench layout.
Note ash cleanout in front, needed for slab-on-grade foundation.

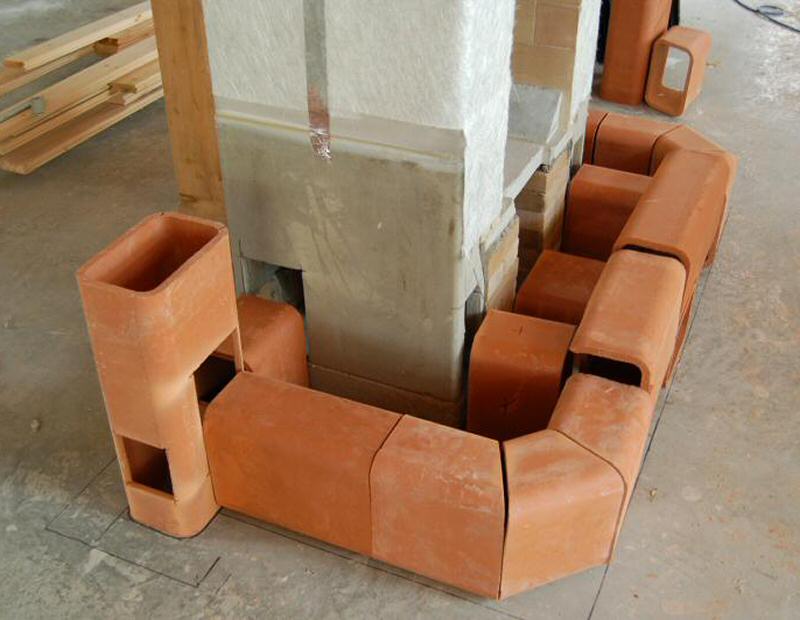

View from rear.
Note cleanout.
Flue liners will have 4" brick underneath, so will sit 4" higher than shown.

Connections viewed from chimney side.
