2018 MHA Research Heater Tests

Test MHA-1819
February 12, 2018

Heat exchanger reconfigured from downdrafting parallel channels
to a serial channel.

Experimental stacking according to ASTM E2780 "high burn rate"
In ASTM testing, the load is intended to be ignited from a hot coal bed.
In this modification, pieces on the top row are split in half, and ignited with kindling placed on top

Red oak, log cabin stacking, 234 stacking. Top ignition
61.5 lbs including 4.0 lbs kindling
23.1% moisture. 234 stacking.
Cold firebox.

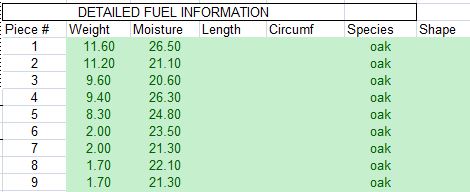

Pieces are numbered from the bottom up,  front-to-back and left-to-right

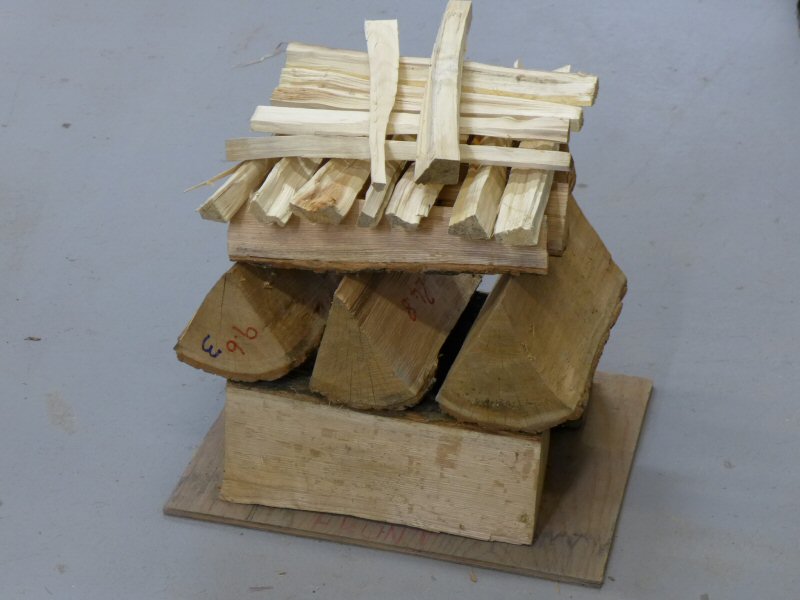

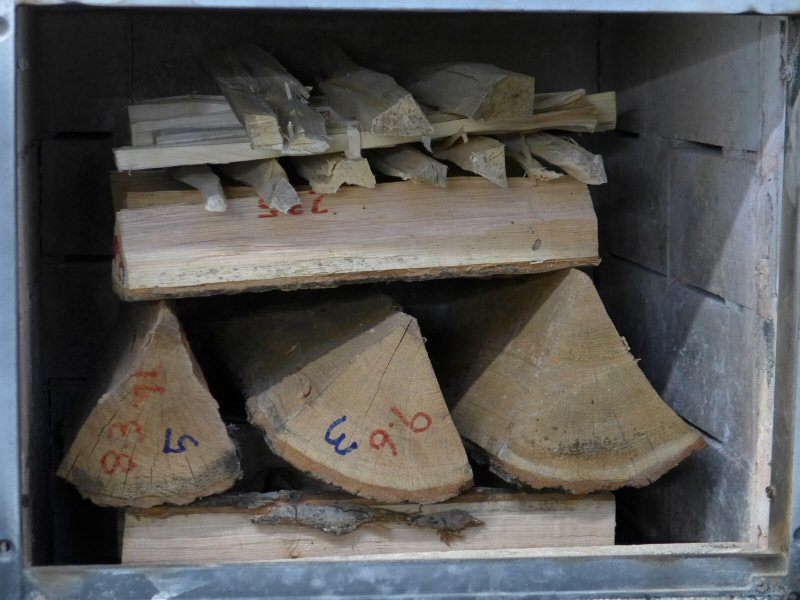

Fuel load including kindling on top. Firebox was cold. Based on last run (MHA-1818), kindling was doubled to 4 lbs.

Pisla HTT 602 door, 22" wide
Austrian eco firebox, see  http://www.heatkit.com/research/lopez-2014-03-01.html

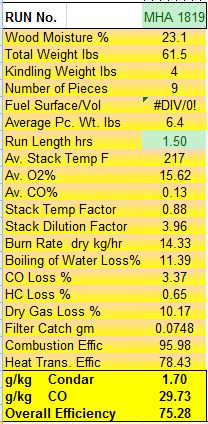

Condar spreadsheet summary panel, calculated at 90 minutes.

Testo Raw Data

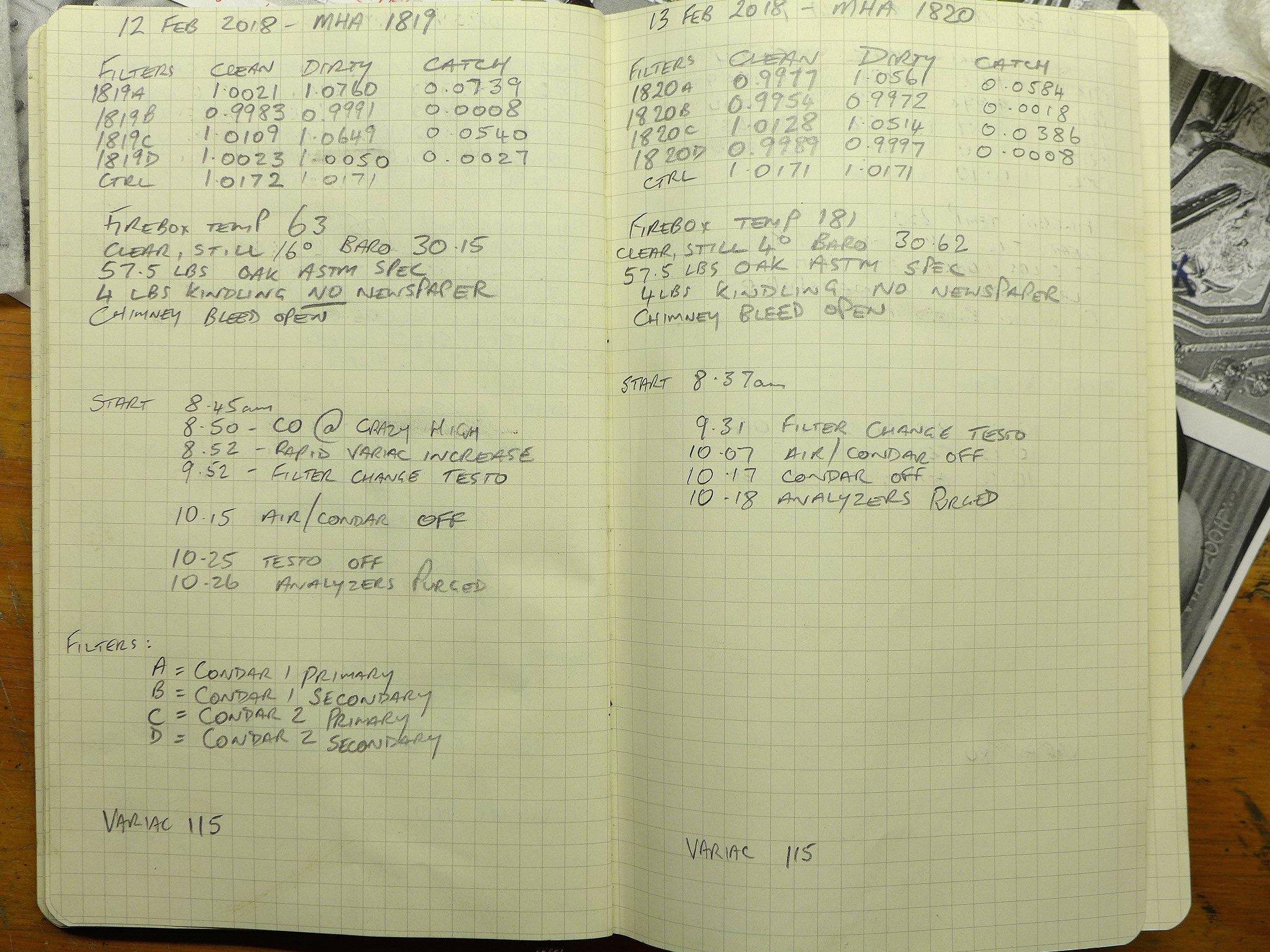

Lab Notes

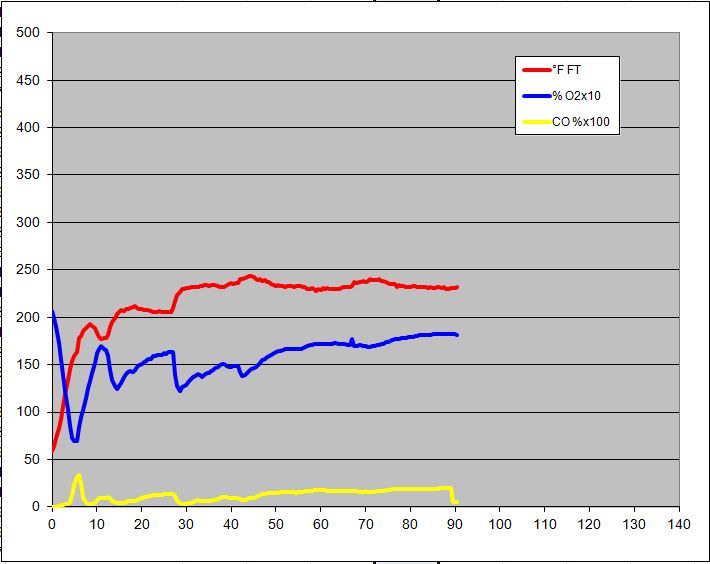

Flue gas graph to 90 minutes.
Note: CO curve is from a Horiba analyzer, and not from the Testo.

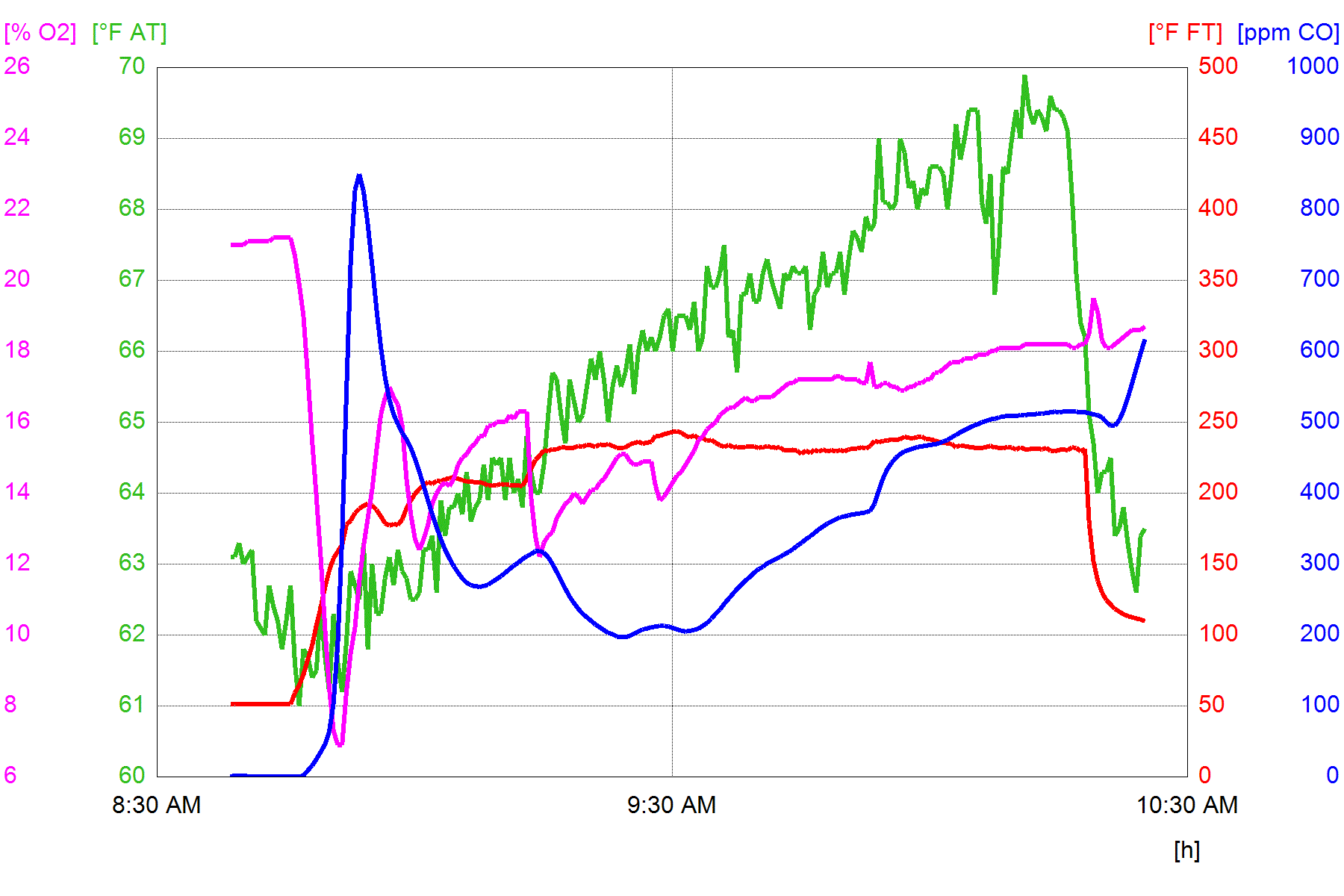

Testo gas graph.
Note: CO curve is inaccurate due to failing sensor. Backup CO data has been used for calculations.
Red line is stack temperature and green line is room temperature.

Red oak, same fuel batch as last series of 2017

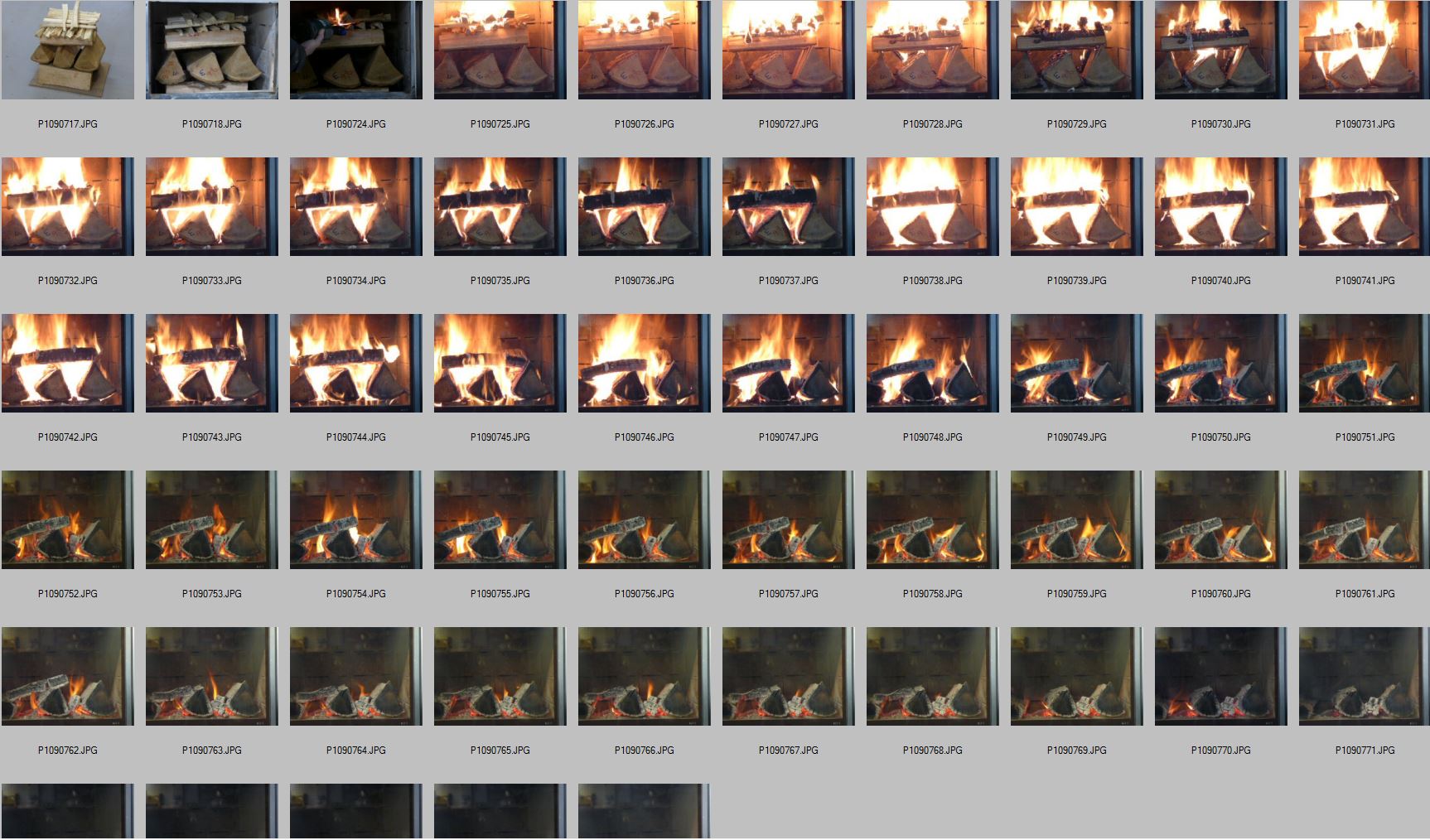

Burn sequence.
Time lapse taken at 2 minute intervals, fixed focus and fixed exposure.
Notice the burn progression. Once the initial surface flaming on the large lower pieces is over and a char layer has formed, the fire burns very slowly. The second row is still intact after the 90 minute standard test length.


This page was updated on February 15, 2018
This page was created on February 12, 2018
