2010 Heater Fuel Crib Tests at Shawville

Test HK-L14
February 3, 2010

Series 3: Test #1 of a 2 test pair with matched cribs. Warm heater.
Colorado M-4 (MHA Fueling Protocol) cribs. Spruce at 19.1% average moisture.
Loading factor 0.15 . Reload
3.75 lbs kindling + 27.2 lb crib (19.02 % av moisture) + reload w. 26.8 lb crib (19.11% av moisture).
Efficiency is calculated at 95% oxygen recovery (Colorado method).
Stack temperature corrected for height.
Detailed moisture descriptions of cribs to follow.
Condar spreadsheet contains detailed lab notes.

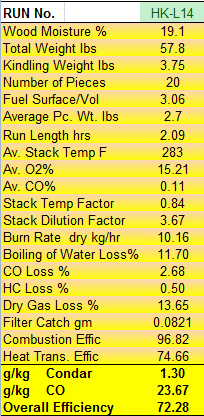

Condar Spreadsheet Results
Condar Spreadsheet Results

Condar Spreadsheet (includes detailed fueling data)

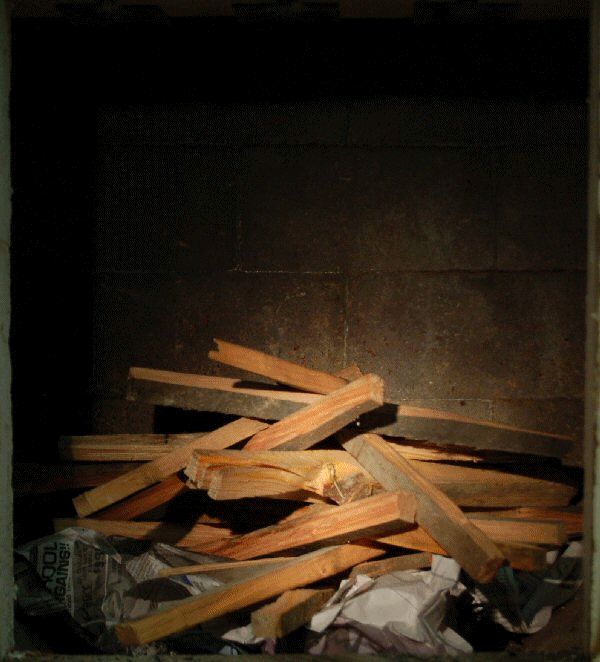

Animation
Animation, 2 minute intervals.

gas analysis

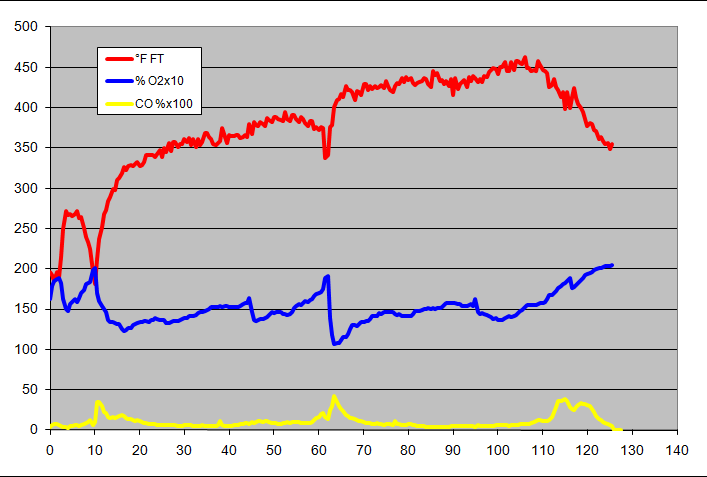

Flue gas.

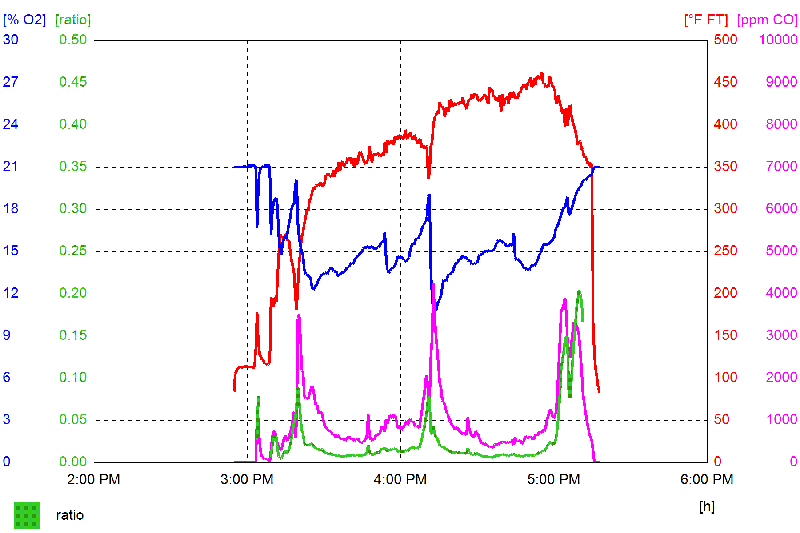

Graph from Testo analyzer. 30 second sampling intervals.
The green line tracks the CO/CO2 ratio.

TESTO Excel data file

opacity

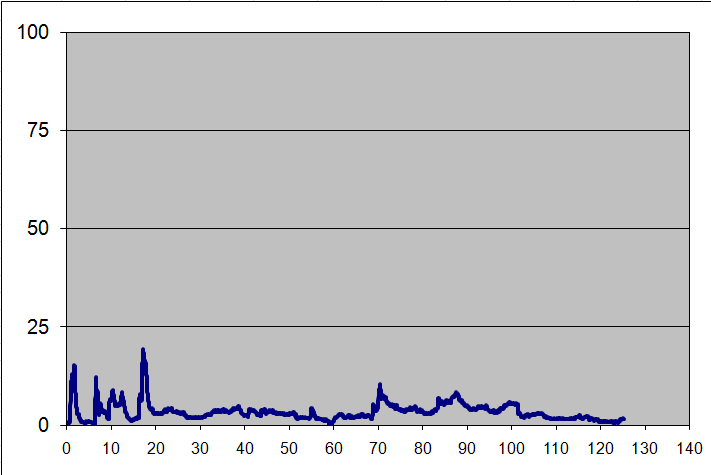

Opacity

fuel load

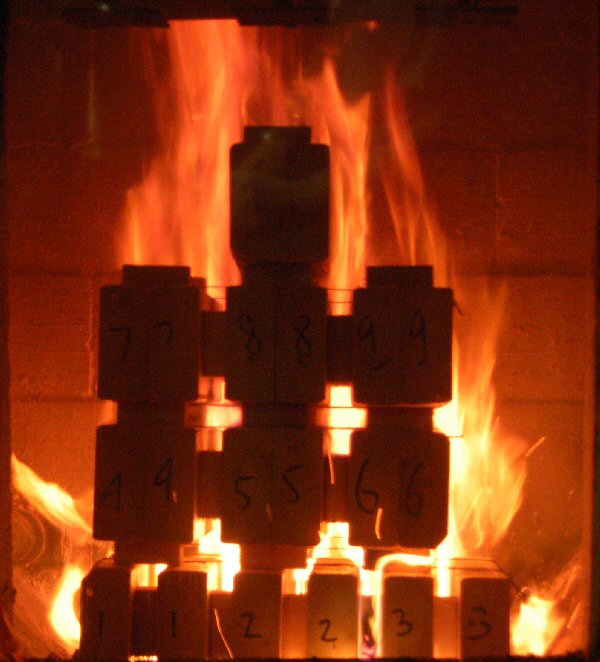

First crib.

Crib

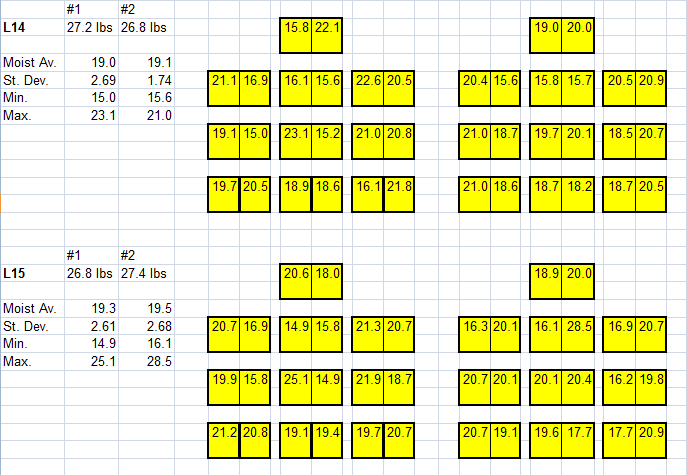

Moisture statistics for the two matched crib sets. The top two cribs represent this test.

Burn sequence

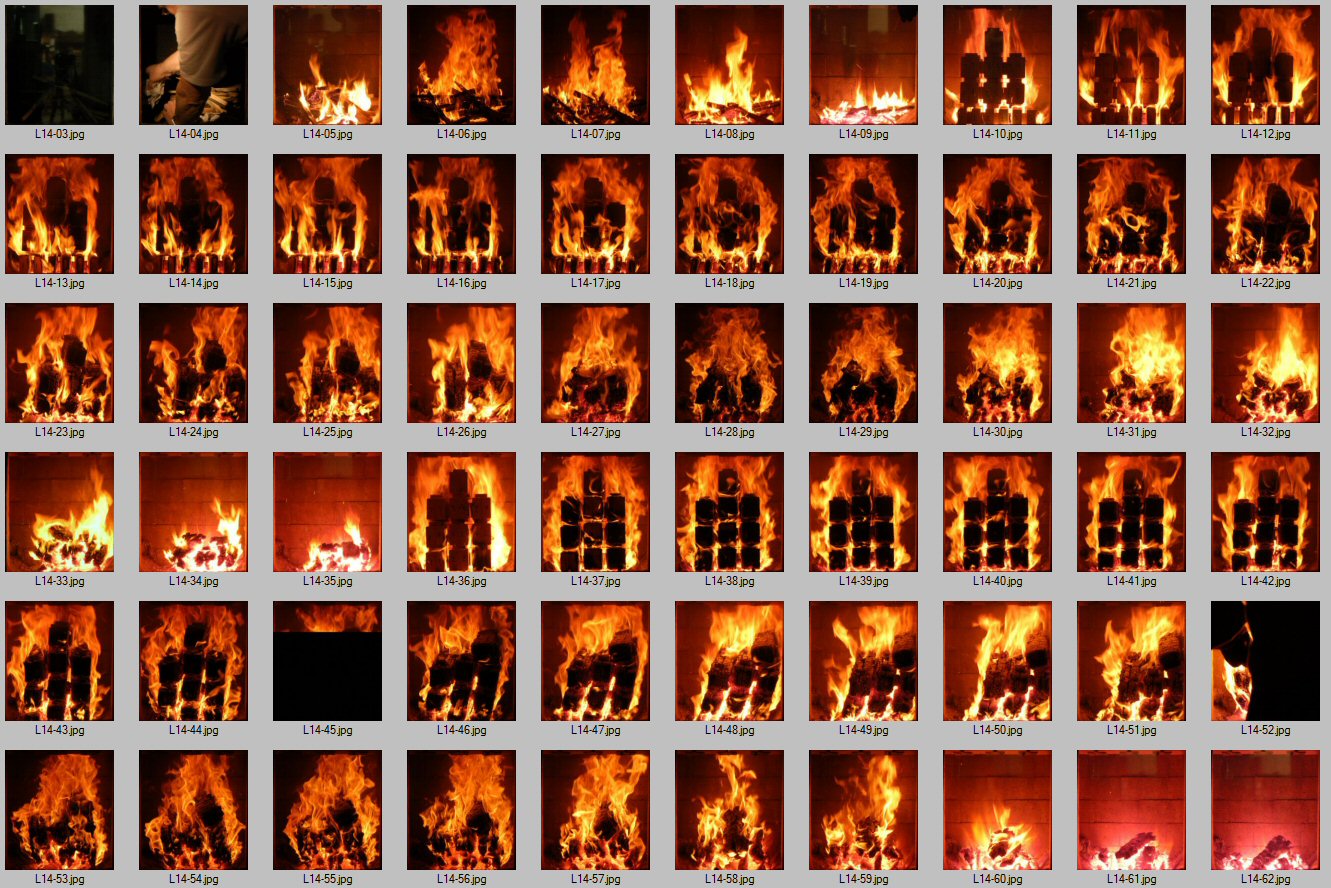

Burn sequence.


This page was updated on February 8, 2010
This page was created on February 7, 2010
