2014 Heater Fuel Tests at Shawville

Test HK-M34
March 20, 2014

Red oak cordwood, big pieces
Side ignition.  Newspaper 3/4 up the kindling pile.
58.3 lbs including 5.0 lbs kindling
19.7% moisture.

Stack temperature corrected for height.
Pisla HTT 602 door, 22" wide
Austrian eco firebox, see  http://www.heatkit.com/research/lopez-2014-03-01.html
Custom air frame, setup "D"
Rear grate closed

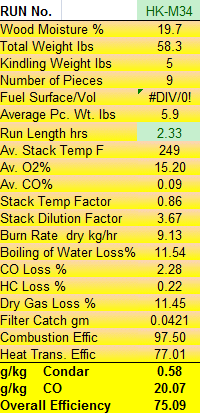

Condar Spreadsheet

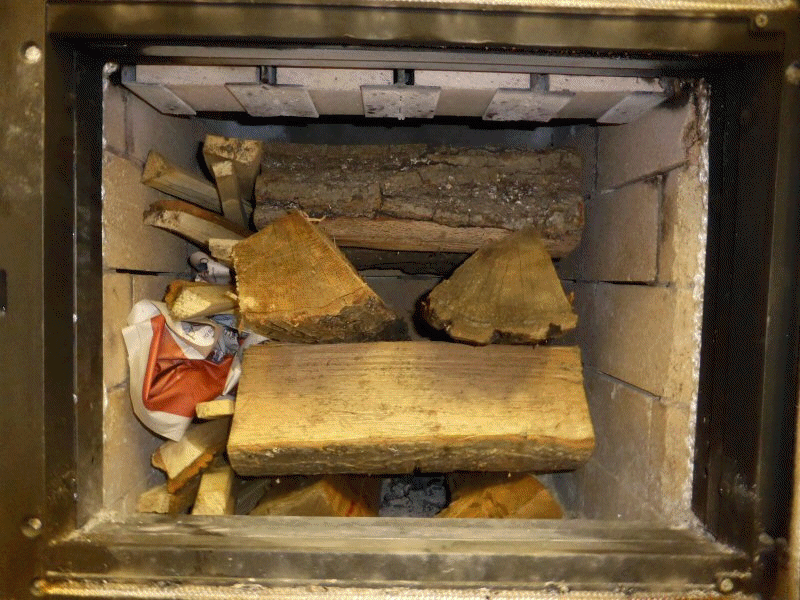

Animation,  5 minute intervals.  Newspaper is located half way up the kindling stack.

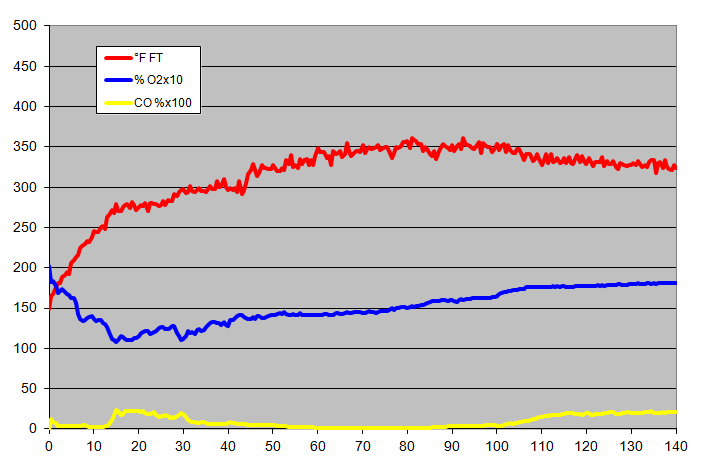

Flue gas curves.

TESTO Excel data file

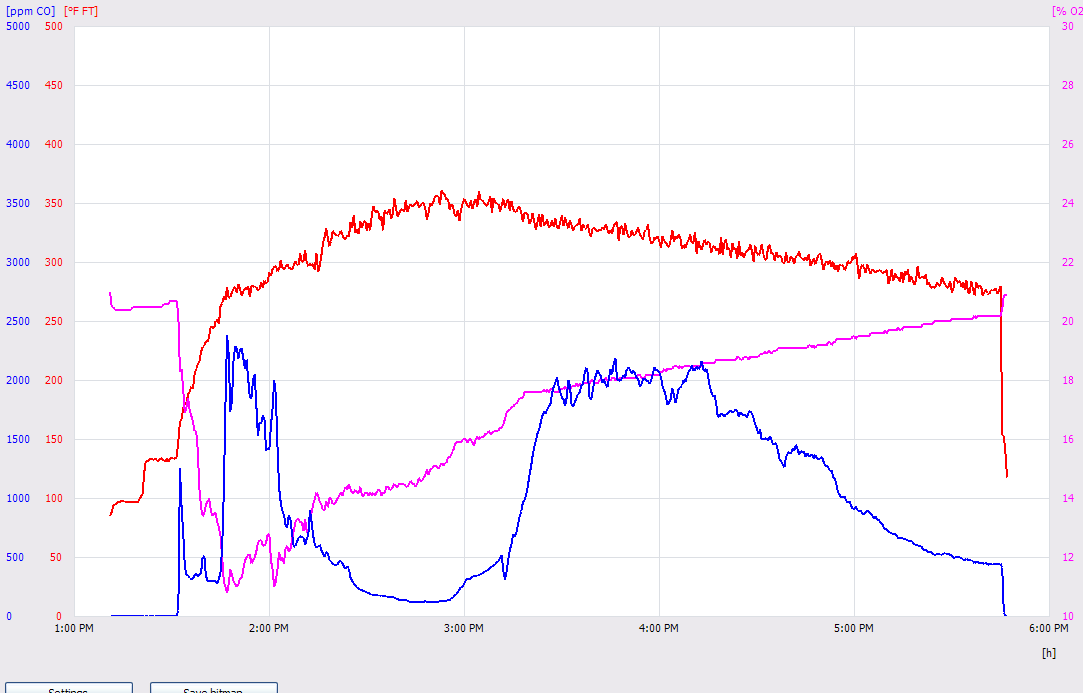

Testo graph
Testo gas graph, entire cyle.

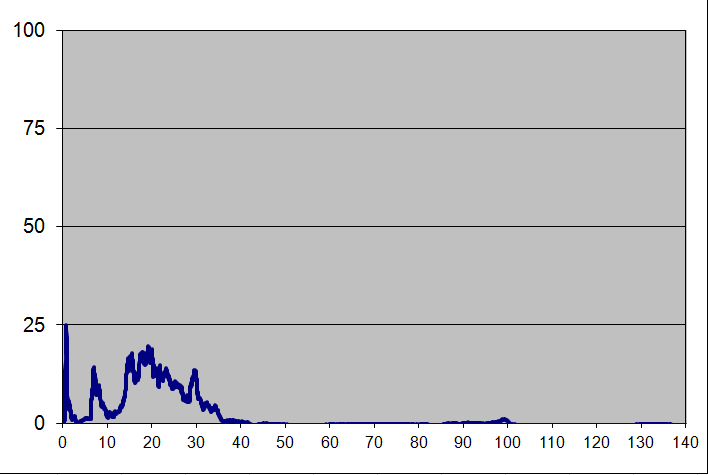

Opacity graph.

Opacity

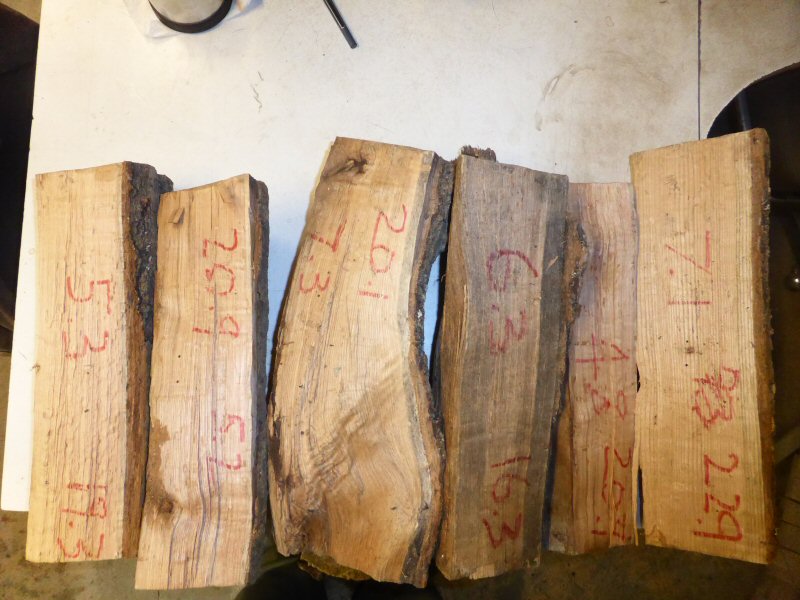

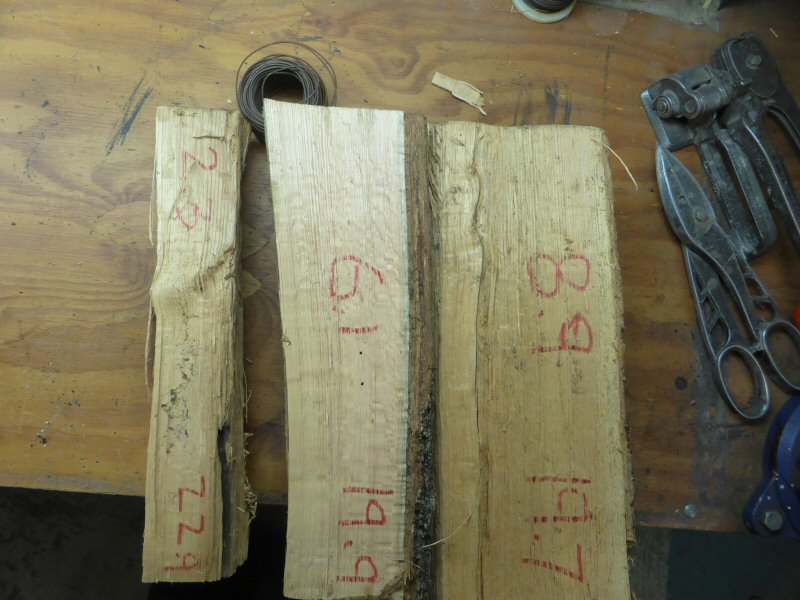

Red oak cordwood.  Largest pieces were placed at the bottom, smallest pieces at the top.

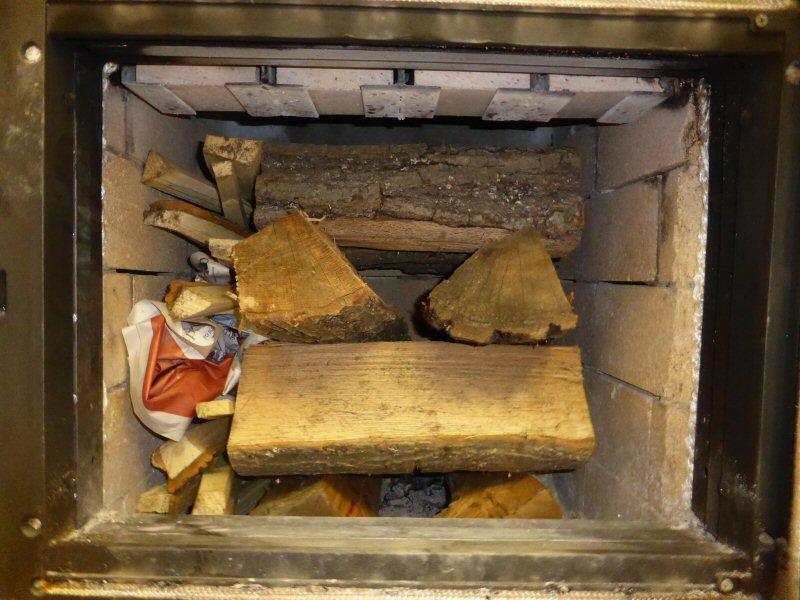

Stacked in firebox

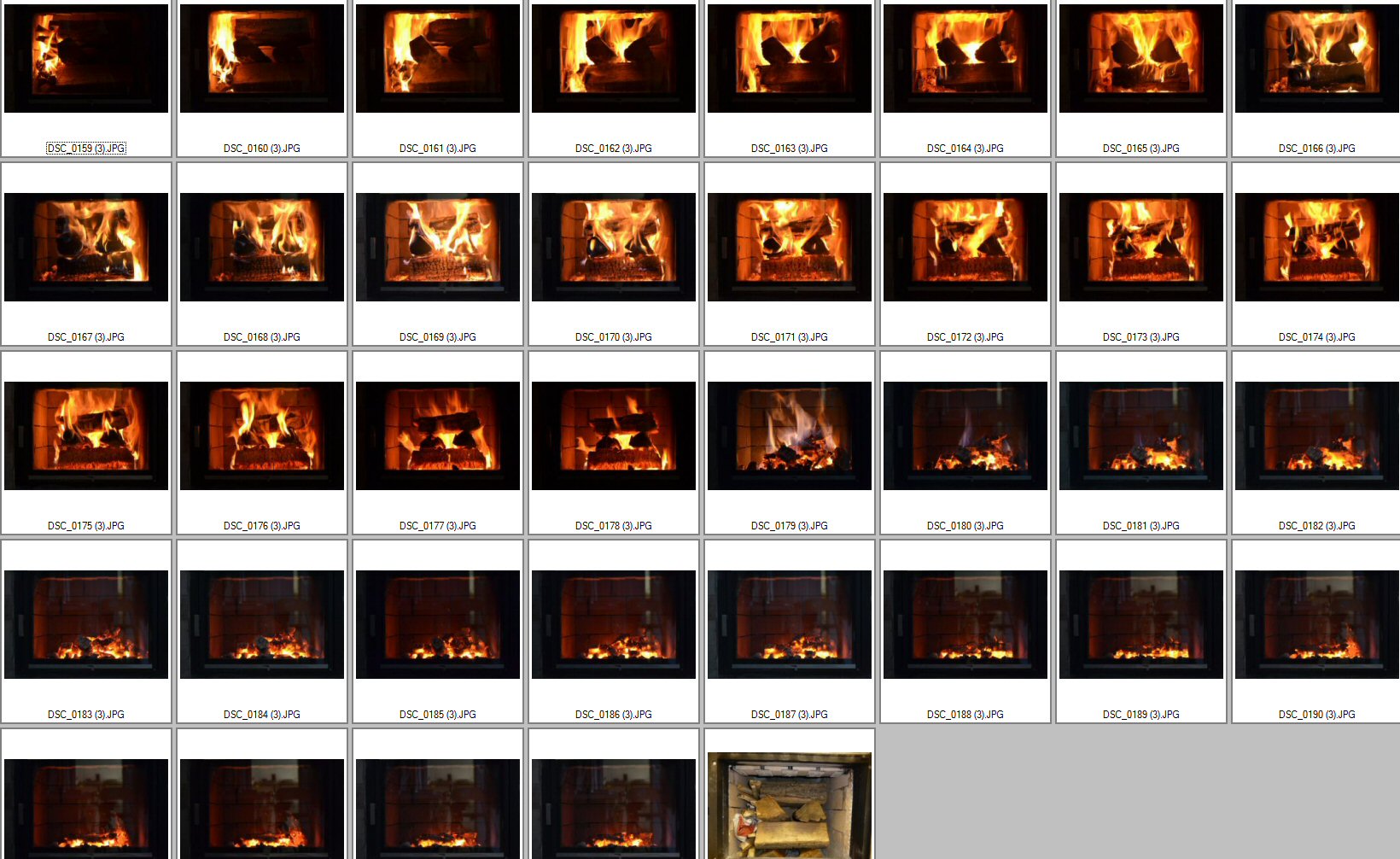

Burn sequence 5 minute intervals
