2019 MHA Research Heater Tests

Test MHA-1911
February 11, 2019

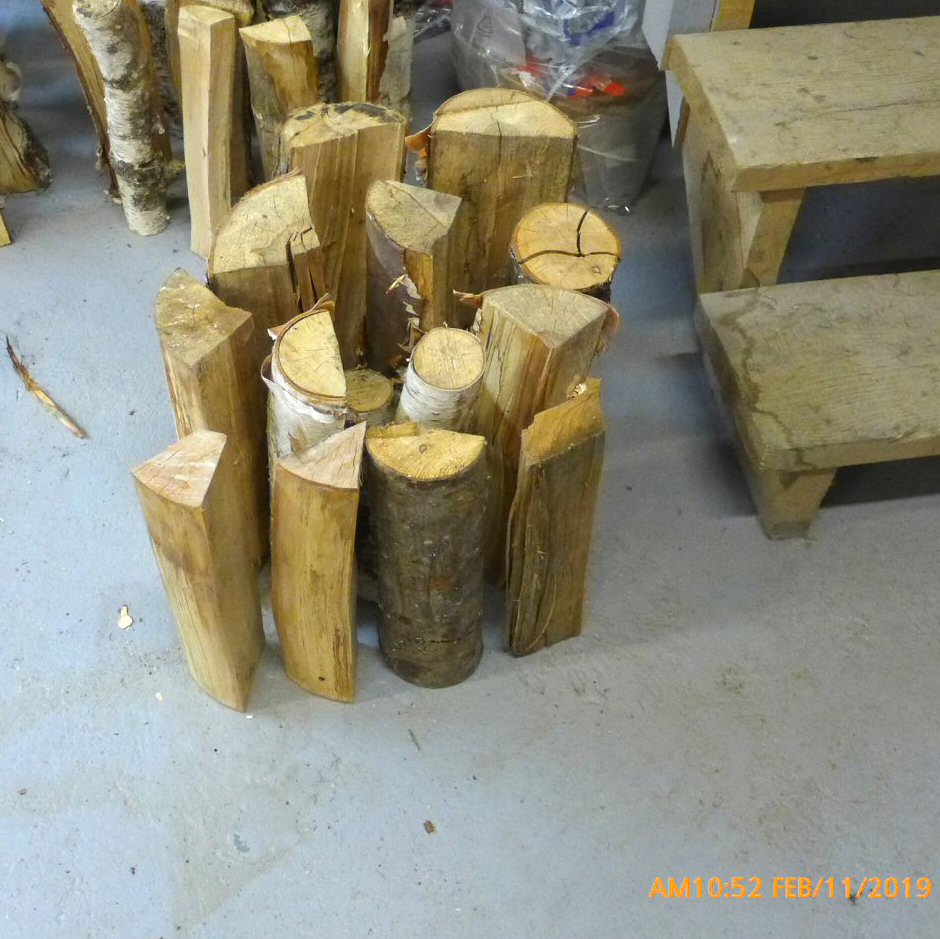

Random loading, white birch, log cabin stacking, top ignition. Cold firebox, cold fuel
Pieces loaded in order of increasing weight. 23431 stacking.
57.9 lbs including 2.0 lbs kindling
Estimated moisture 15%.
Run #5 of a cold firebox test series. Heater fired every 2nd day.
The Testo data was started 15 minutes before the test.
Lowest CO number ever recorded, resulting in a combustion efficiency of 99.21%

Pisla HTT 602 door, 22" wide
Austrian eco firebox, see http://www.heatkit.com/research/lopez-2014-03-01.html

This was the 9th full run using the new automated Condar controller

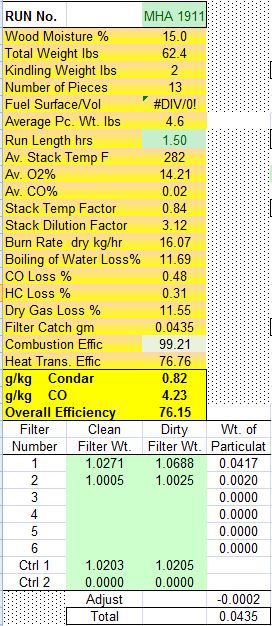

Condar spreadsheet results at 90 minutes.

Condar Spreadsheet

Testo Raw Data

Lab Notes

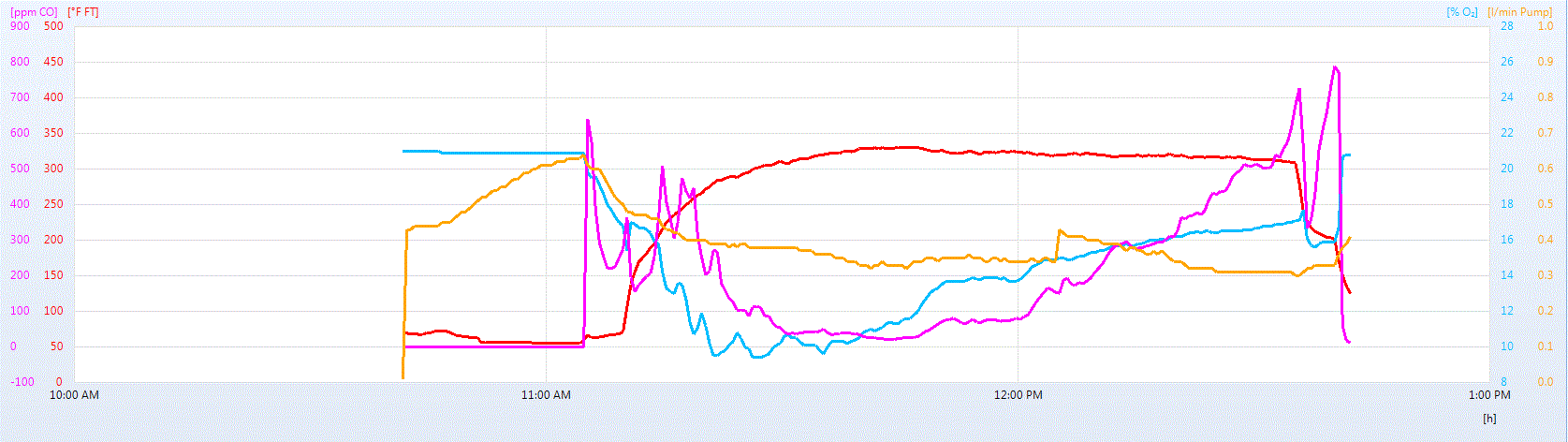

Testo gas graph.
Combustion air was accidentally closed for the first 5 minutes (11:04 - 11:09), although door airwash was open. Note CO spike, and flat stack temperature, around 65F.

Random loading, white birch, log cabin stacking, top ignition. Cold firebox.
Pieces loaded in order of increasing weight. 23431 stacking.
57.9 lbs including 2.0 lbs kindling
Estimated moisture 15%.
Run #5 of a col firebox series. Heater fired every 2nd day.

Burn sequence. Time lapse taken at 2 minute intervals. White square marks 90 minutes.
